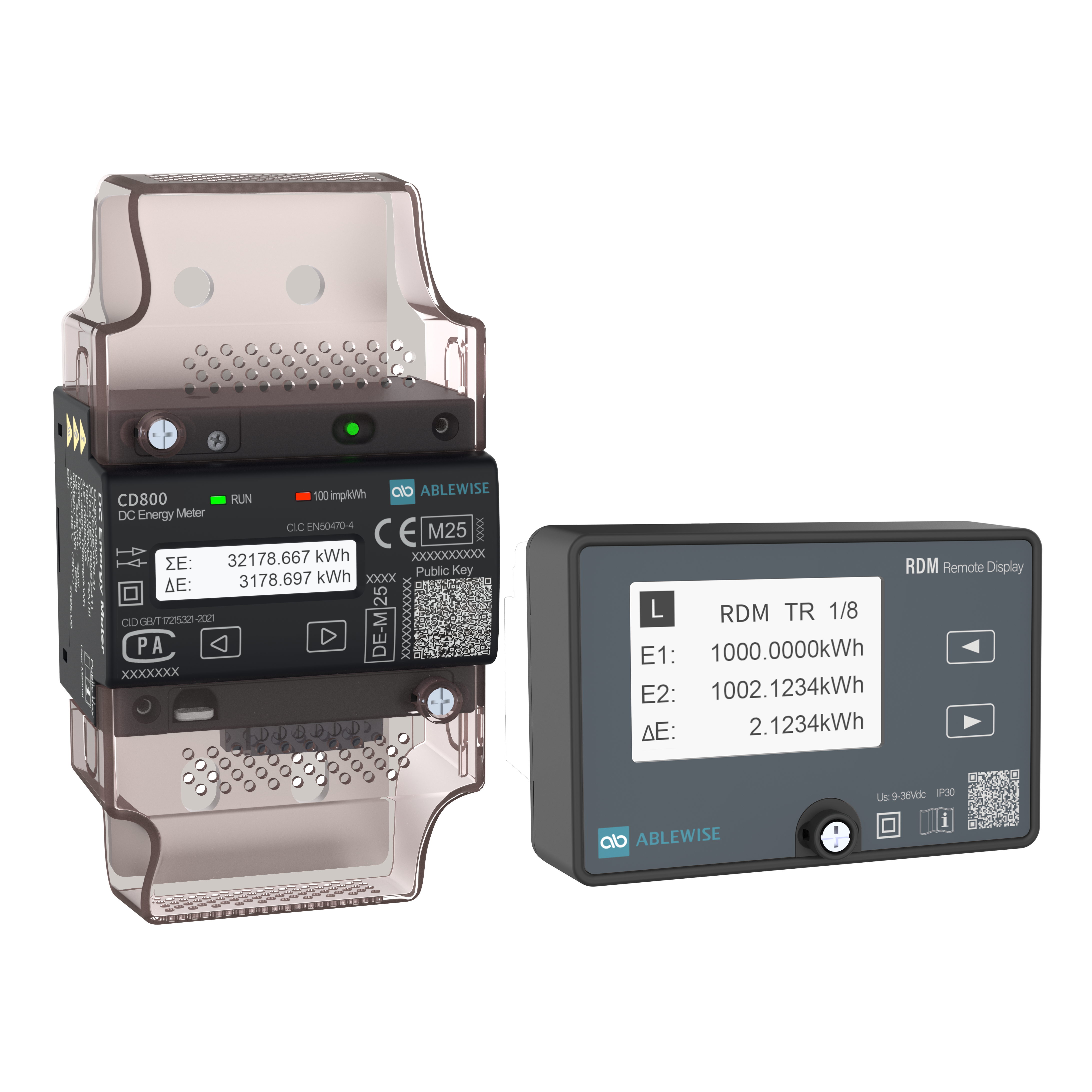

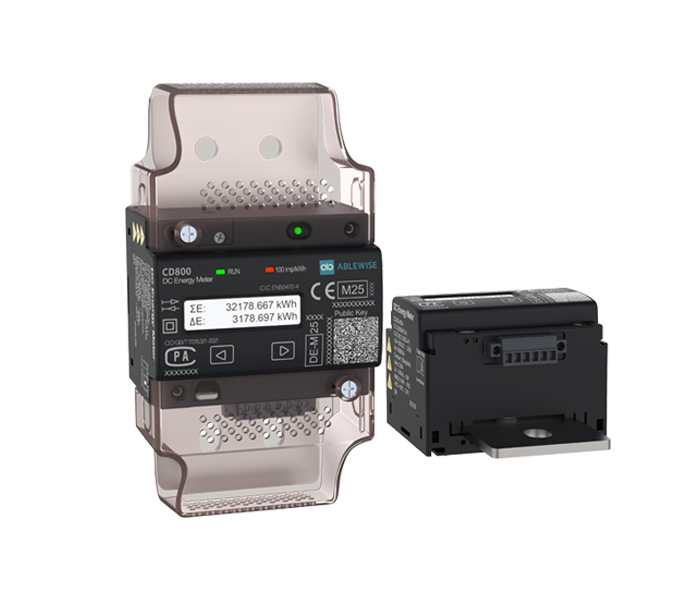

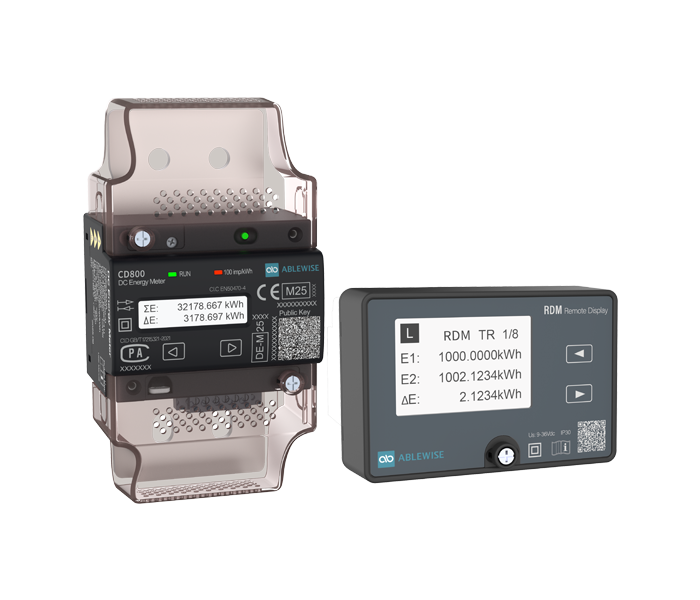

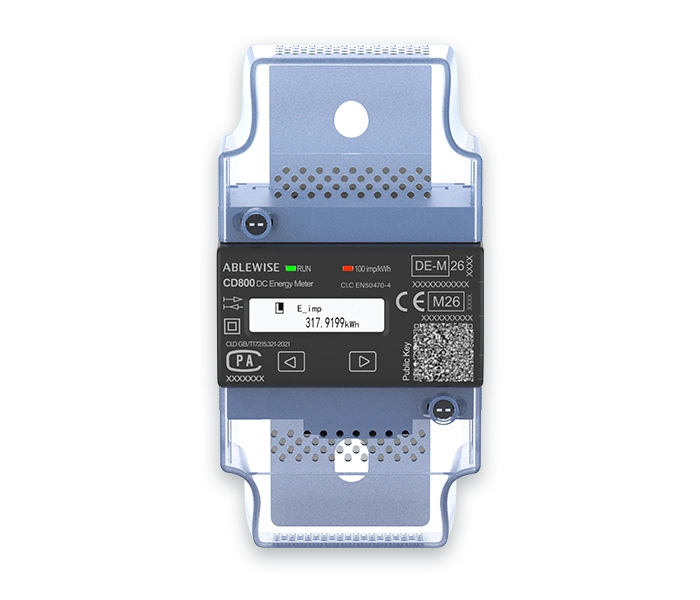

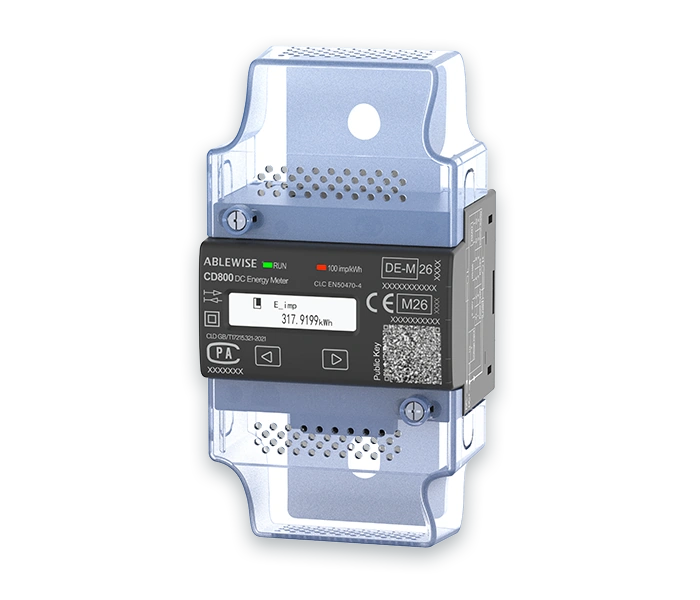

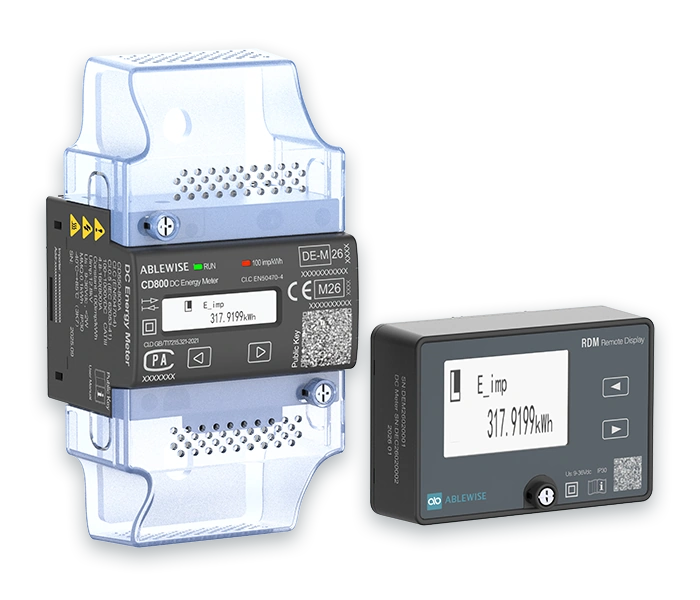

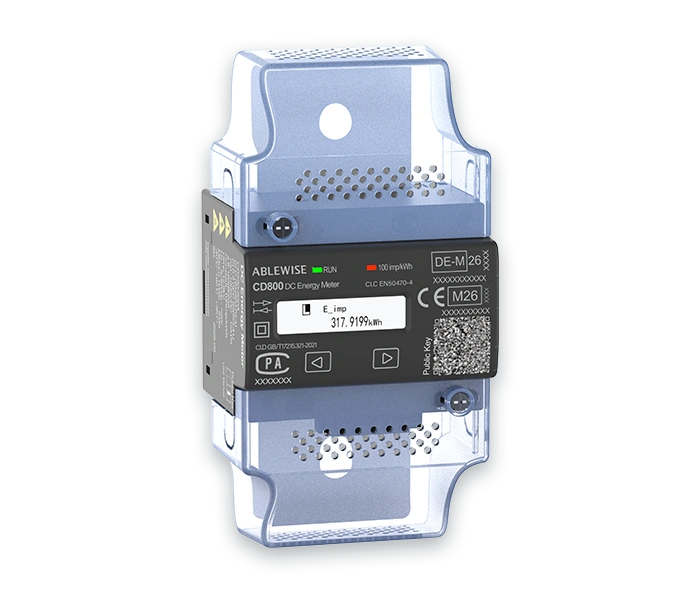

DC Energy Meter

CD800

DC Energy Meter

The CD800 series is a new generation of DC energy meters designed and developed specifically for metering applications at DC charging stations. It has high-precision measurement functions for parameters such as voltage, current, and power, with an energy accuracy of 0.5 measurement level.

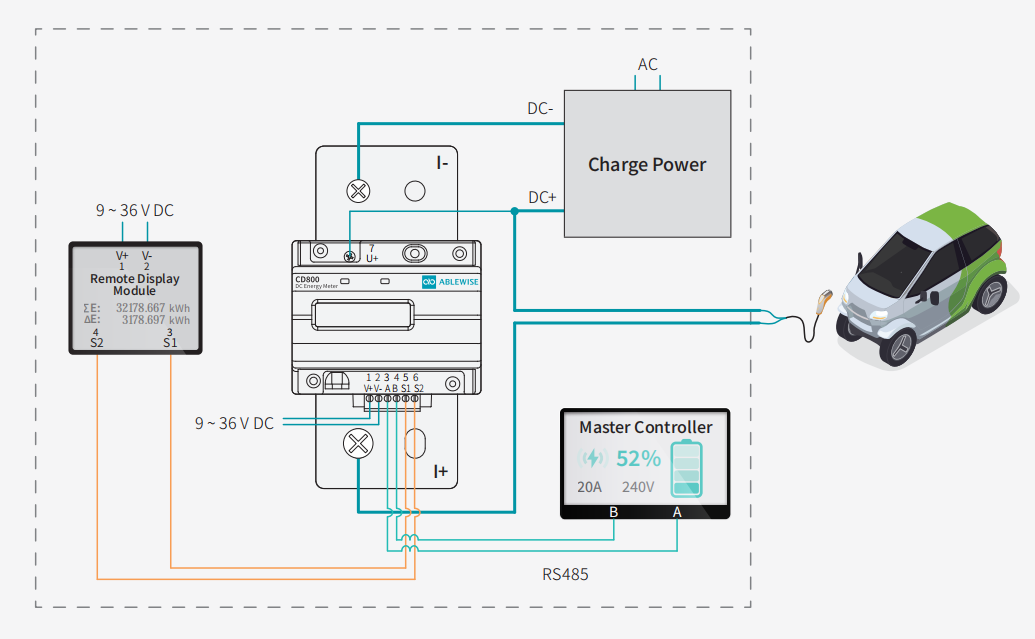

The integrated design and internal integration of current shunt provide the latest highly integrated solution for electric vehicle DC charging devices. The product is designed for global application scenarios and complies with the latest IEC 62053-41:2021 standards for DC energy meters and charging stations, as well as CE, MID, Eichrecht, LNE and other certification requirements. The product has advanced technology and excellent quality, making it an ideal measuring component for DC charging stations.

Data Download

Measurement Accuracy

METERING
Parameter	Accuracy	Resolution	Range
Voltage(U)	0.2%	0.1V	100～1000 VDC
Current(I)	0.2%	0.01A	3.9～800A
Power(P)	0.5%	Can be set,up to 0.0001 kW	0～920 kW
Energy(E)	IEC62053-41:Class 0.5;EN 50470:Class C(0.5)	Can be set,up to 0.0001 kWh	0～4200000000.0 kWh
Real Time Clock	0.5 s/d	-
