DC Meters

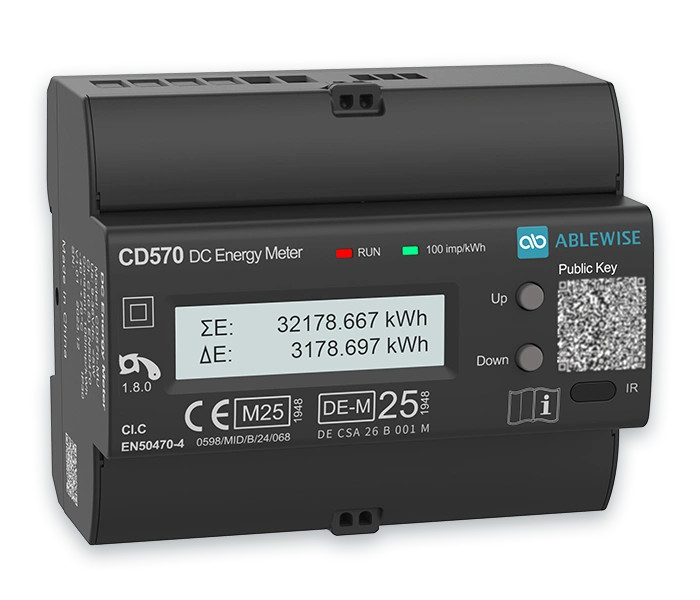

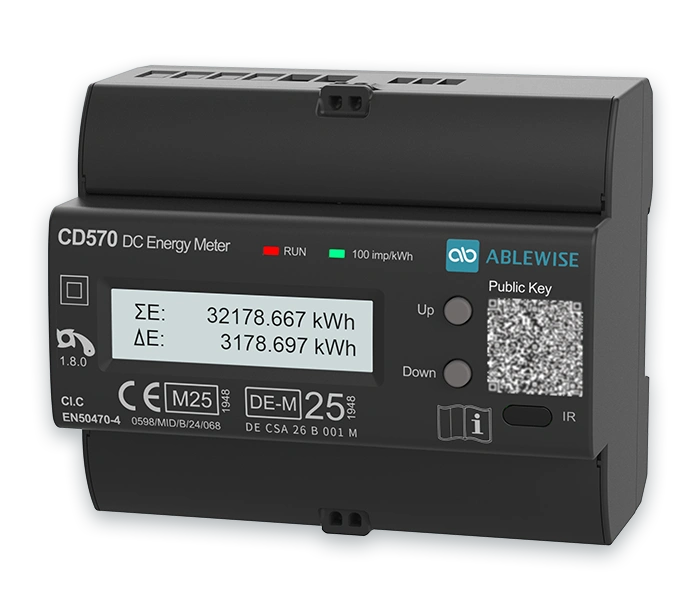

CD570

DC Metering

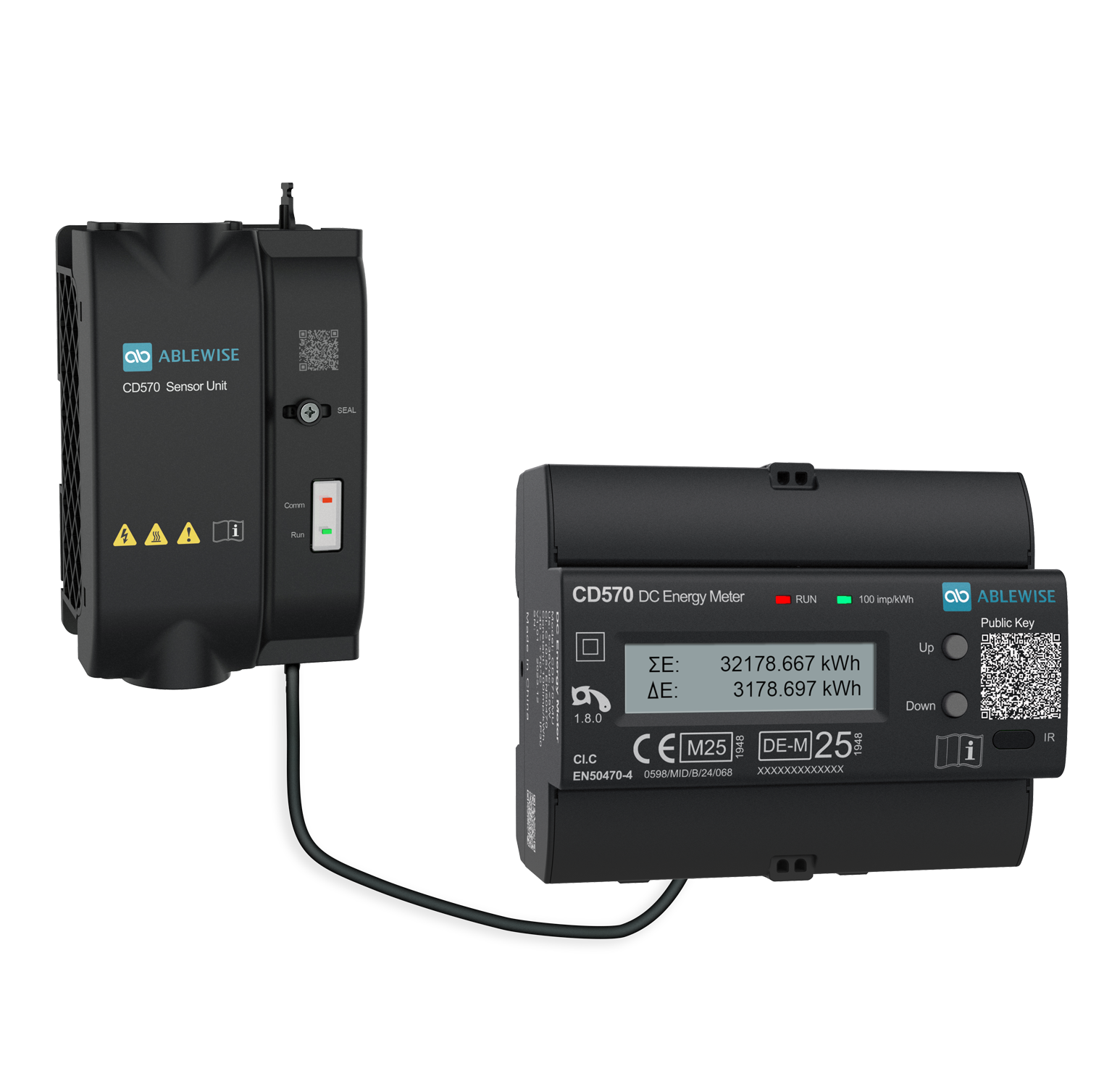

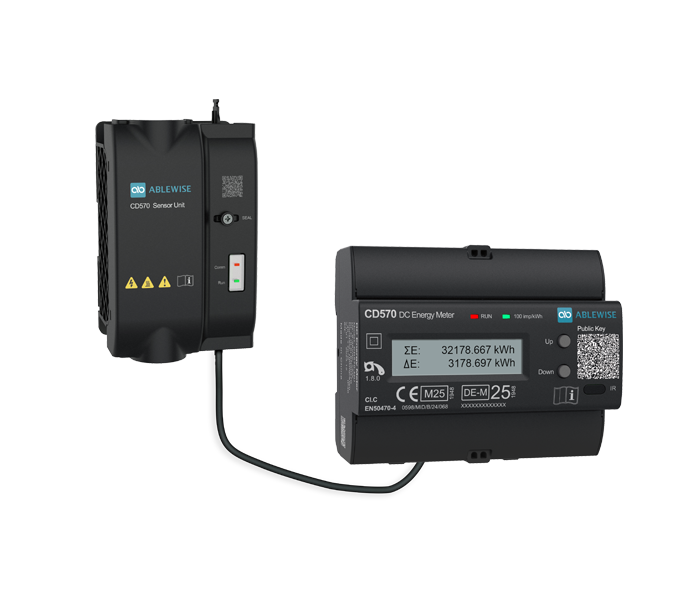

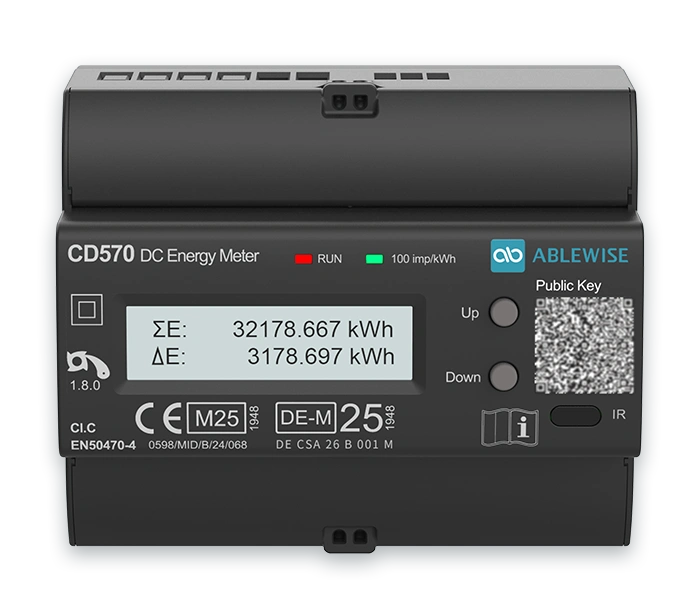

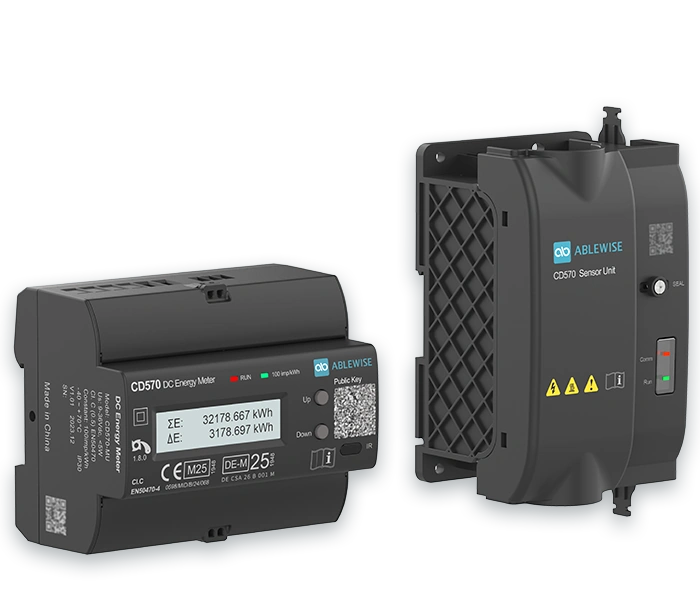

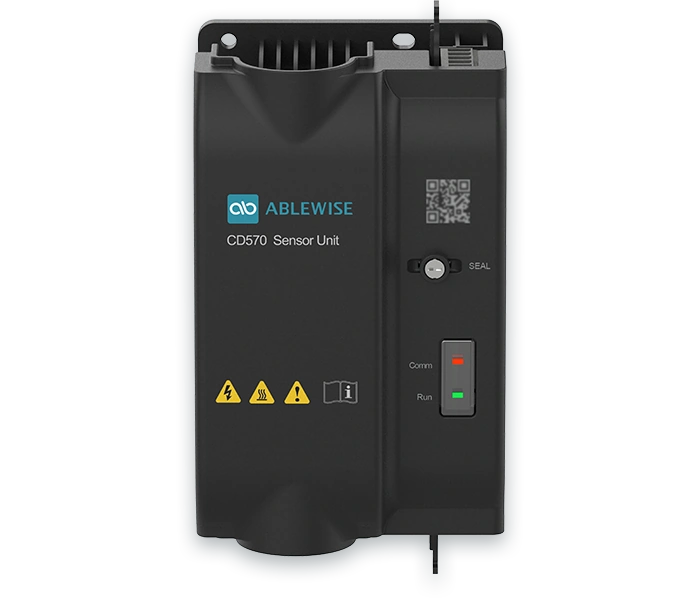

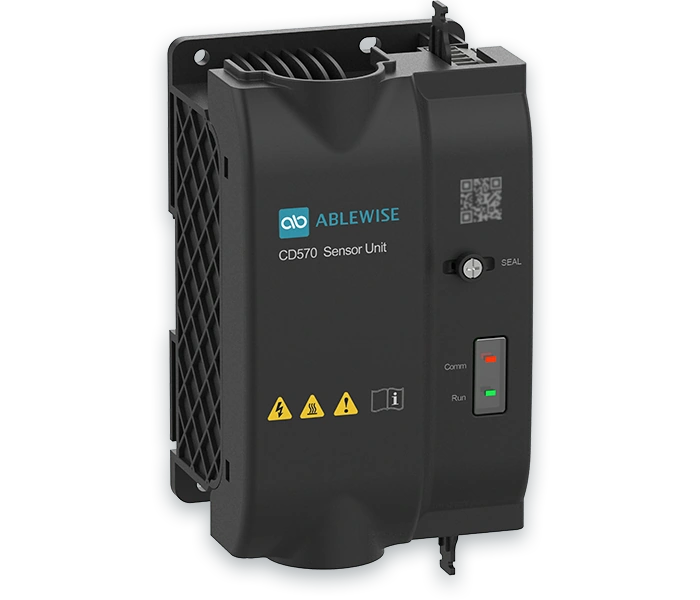

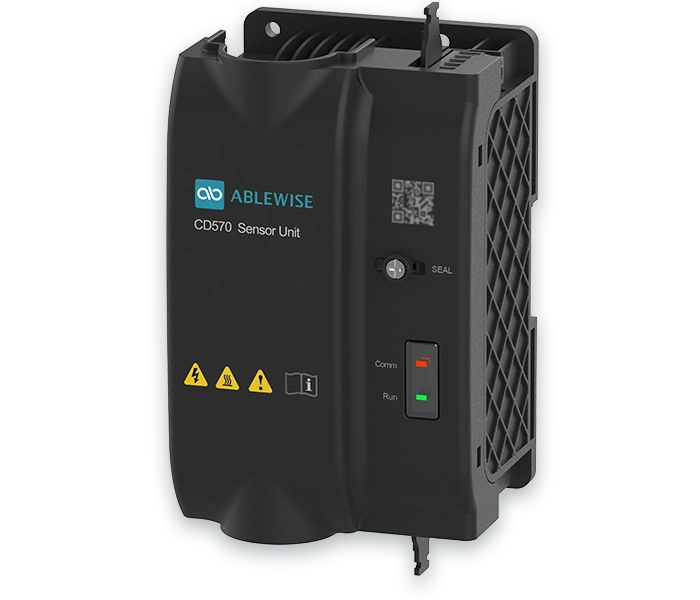

CD570 series new generation DC Energy meter is specially designed and developed for the metering application of DC charging piles. With high-precision voltage, current, power and other parameter measurement functions, the power accuracy reaches class 0.5, and the internal integration of shunt and insulation tetsing module provides the latest highly integrated solution for the DC charging device of electric vehicles. The product design is oriented to global application scenarios. The product has advanced technology and excellent quality, and is the ideal metering element of DC charging Stations.

Data Download

Key Features

ALARMS

Over- and Under-Limit: Voltage, Current, Ripple (Voltage &Current), and Temperature

HIGH ACCURACY

· IEC 62053-41: 2021 class 0.5

· EN 50470-4: 2023 class C

ENERGY METERING

· Time-of-Use (TOU): 4 Tariffs, 12 Seasons, 14 Schedules

· Software Based Cableloss Compensation and 4-Wire-Measurement

DATA RECORDING AND LOGGING

12 Monthly Energy Record

Transaction Energy Counter can be Recorded

CERTIFICATION

· CE and MID: Directive 2014/32/EU

· German Eichrecht/PTB

DATA FORMAT/PROTOCOL

· Signed Data Readouts in OCMF Format

· RS485 Modbus RTU

Measurement Accuracy

Parameter	Accuracy	Resolution	Range
Voltage	0.2%	0.1V	100～1150VDC
Current	0.2%	0.01A	2.4～600 A
Power	0.5%	Settable,0.0001kW(Max)	0～600 kW
Energy	IEC62053-41:class 0.5 EN 50470:class C	Settable,0.0001 kWh(Max)	0～99999999.9 kWh
Temperature	±2℃	0.1℃	-40～105℃
Stability	<0.5 sec/day
