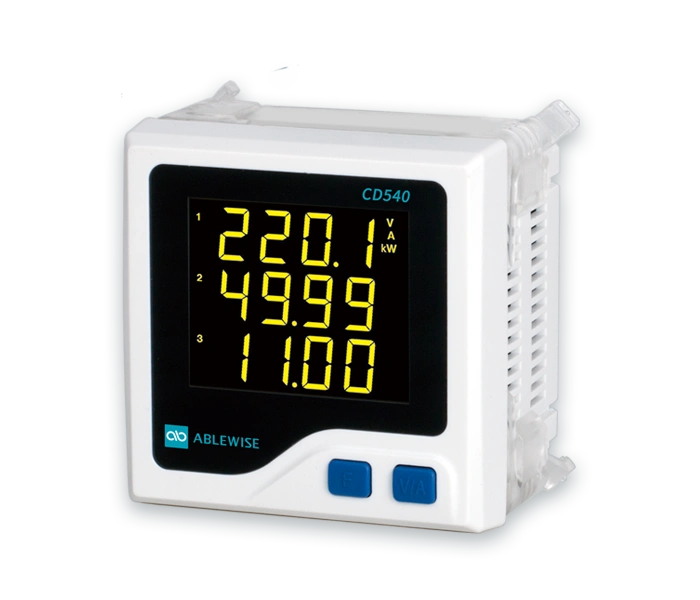

◆Panel-Mount for Easy Use
◆Directly Connected to 1500 V DC
◆Flexiable Input by External Shunts or Sensors
◆4DI, 2RO, with an optional ±15V Hall power supply
| Parameters | Accuracy | Resolution | Range |
| Voltage | 0.002 | 0.001V | 0～9999V |
| Current | 0.002 | 0.001A | 0~±50000 A |
| Power | 0.005 | 0.001kW | 0~±60000 kW |
| Energy | 0.005 | 0.01 kWh | 0～9999999.99 kWh |
| 0.005 | 0.001 kWh | 0～999999.999 kWh | |
| 0.005 | 0.0001kWh | 0～9999999.9999kWh | |
| Ampere-Hour | 0.005 | 0.01Ah | 0～999999.99 Ah |
| DI Count | 0～4294967295 | ||
| Temperature Drift | <100 ppm/℃ | ||
| Stability | 0.5%o/year | ||
|
Metering Voltage Current Power Ampere-Hour Max/Min Record Max/Min Parameter Parameter Sources: Voltage, Current, Power I/O Functions Digital Input: Monitor Switch Status Relay Output: Relay Command Control Output ON/OFF; Limit Alarm Control Output |
Communication Modbus RTU via RS485 Port Support Connect to SCADA, PLC or Other External Systems Display LCD Display, White Backlight View Metering Parameters |
