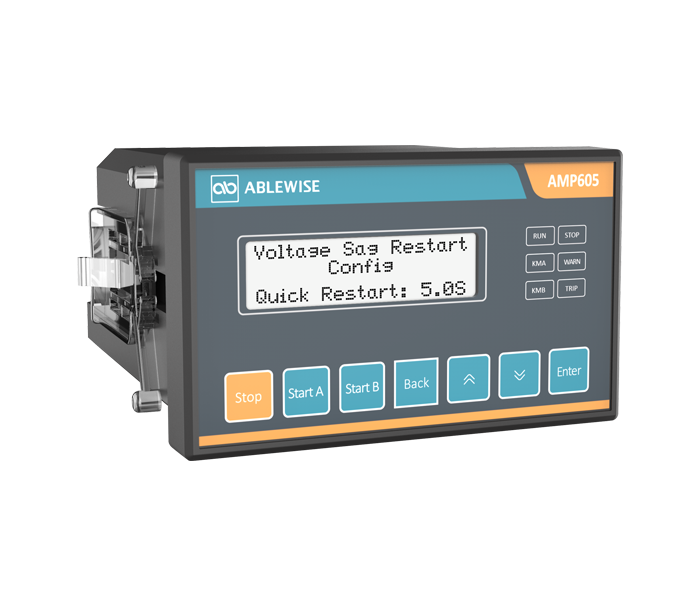

The AMP605 series low-voltage motor protectors are designed to meet the protection and management needs of AC asynchronous motors with voltages below 690V. The product offers multiple protection functions and provides various event records and queries, facilitating on-site operation management. Utilizing fieldbus technology for data exchange, it can transmit various operational information and fault records to the control center or independently form a low-voltage control system. Widely used in industries such as power, petrochemicals, coal, steel, and metallurgy, it is an ideal choice for intelligent MCC systems.
| 功能 | 参量 | AMP605 | AMP605-A |
| 测量功能 | 电压测量：相电压 电流测量：A相电流、B相电流、C相电流、平均电流、正序电流、负序电流、零序电流 功率测量：总有功功率、总无功功率、总视在功率、总功率因数 相角测量： A相、B相、C相的基波相角 其他电气参数：频率、剩余电流、热容量、电流不对称度 |
● | ● |
| 保护功能 | 过载反时限保护、三相电流不平衡保护、欠载保护、单相接地保护、短路保护、电流断相保护、时间保护、外部故障保护、 起动超时保护、过压保护、欠压保护、欠有功功率保护、电流相序保护、堵转保护、阻塞保护、接触器分断能力保护、 起动闭锁保护、剩余电流保护(需选配剩余电流互感器) |
● | ● |
| 运转控制功能 | 直接起动、保护起动、双向(可逆)起动、Y-△起动 | ● | ● |
| 抗晃电再起动 | ● | ||
| 维护管理功能 | 上位机参数设置，功能显示，故障跳闸记录 | ● | ● |
| IO选项 | 6 路 D I 点 | ● | ● |
| AO | ● | ||
| RO(三路常开， 一路常闭) | ● | ● | |
| 通讯 | Modbus-RTU | ||
| 显示安装 | LCD液晶显示，面板式安装 | ||

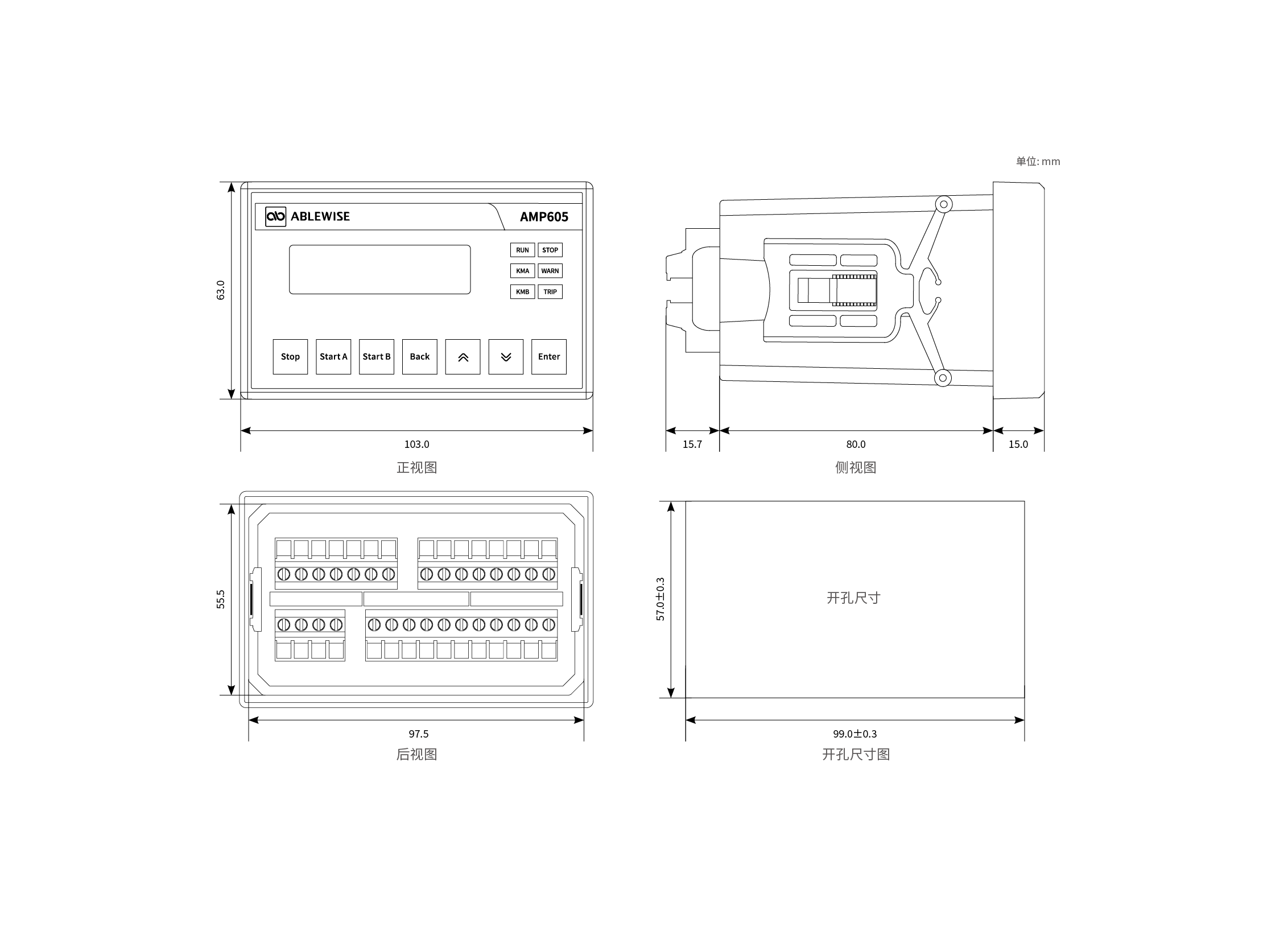

| 外形尺寸 | 63×103×110.7mm 开口尺寸为：99×57(±0.3)mm | ||
| ● 固有功能；空白 无此功能 | |||
